1 1
£535.95
£535.95
Sale Sold out
Tax included.

TF151L12

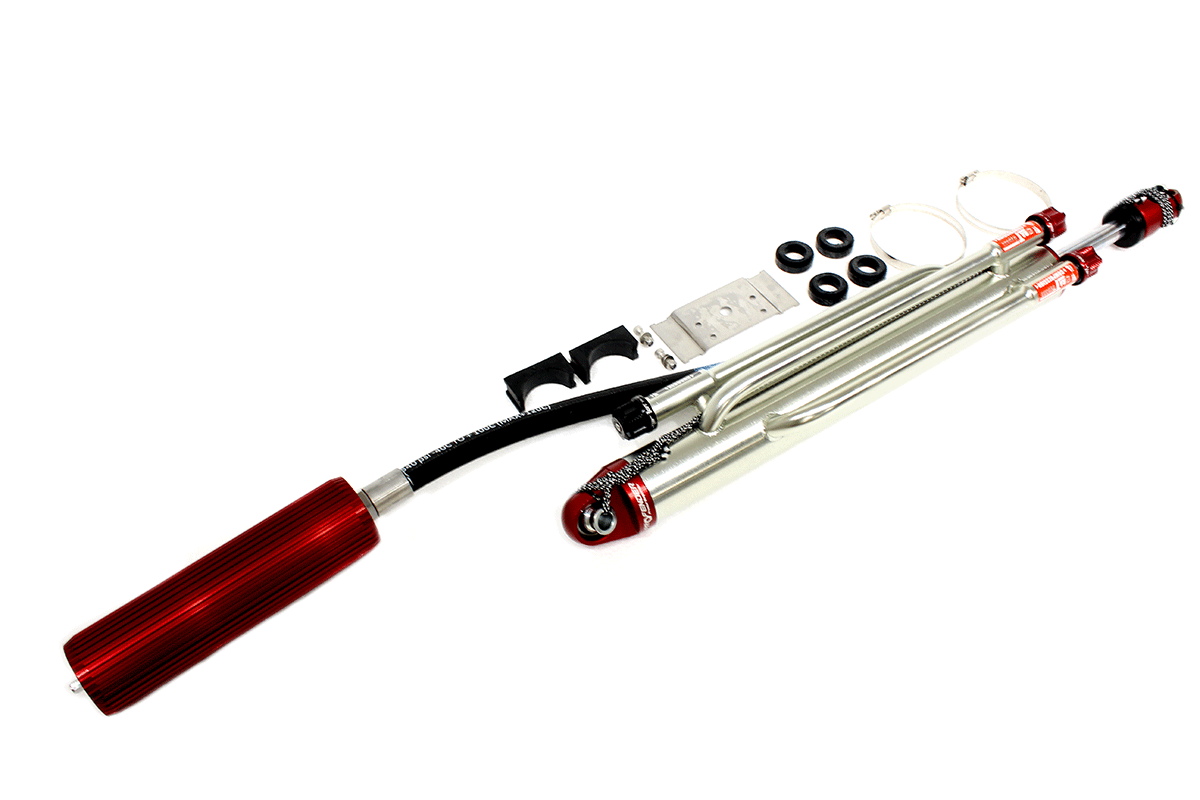

TRIPLE BYPASS DAMPER

TRIPLE BYPASS DAMPER

TRIPLE BYPASS DAMPER

TRIPLE BYPASS DAMPER

Bypass Shocks have a 2.5 Inch Body and along with features like a fined remote reservoir to oil cooling.

The position-sensitive external bypass design allows for stages of the shocks compression and rebound stroke to be adjusted independently without affecting the other stages.

There are 2 Compression Tubes and 1 Rebound.



NOTE: Bypass Shocks are built "left" or "right" handed

Shock Data

Code

Travel

open (mm)

close (mm)

bore

rod

shell

mount

TFR151(R-L)12

12”

865

560

60mm

22mm

62mm

Plain Bearing Dia 16mm

TFR151(L-R)14

14”

980

620

60mm

22mm

62mm

Plain Bearing Dia 16mm

TFR151(L-R)16

16”

1065

670

60mm

22mm

62mm

Plain Bearing Dia 16mm



  • Piston 60 mm
  • Rod 22 mm
  • Outter Shell 62 mm
  • High Quality Shim Vavle
  • Rebuildable
  • Endurance and High Performance
  • 2 Tubes Adjustable Compression Damping Force
  • 1 Tubes Adjustable Rebound Damping Force
  • Min Nitrogen Gas Pressure 100 psi
  • Maximum Nitrogen Gas Pressure 250 psi
