TF7010 8 WAY SWITCH PANEL SYSTEM

Name: TF7010 8 WAY SWITCH PANEL SYSTEM
Brand: Wilderness Lighting
SKU: TF7010
Price: 189.95 GBP
Availability: InStock

Product variants

Quantity

8 WAY SWITCH PANEL SYSTEM FROM WILDERNESS LIGHTING

Are you looking to fit LED lights to your vehicle but are put off with all the wiring? Well we hope to have the perfect solution...

This eight way switch panel allows you to wire up eight different lights or accessories while only having one switch panel mounted in the cab of the vehicle. No more drilling lots of holes with separate switches and relays.

Simply connect your lights to the main fused control board and run one control wire through to the cab area. This then allows you to control all eight devices separately. A sheet of 50 labels are also included so you can customise your touch screen panel to match your lights.

Maximum Power - 600w - 1200w

Maximum Current - 60A

Input 12v to 24v

Outlets - 2 x 30amp, 2 x 20amp, 2 x 10amp and 2 x 5amp

IP67 rated

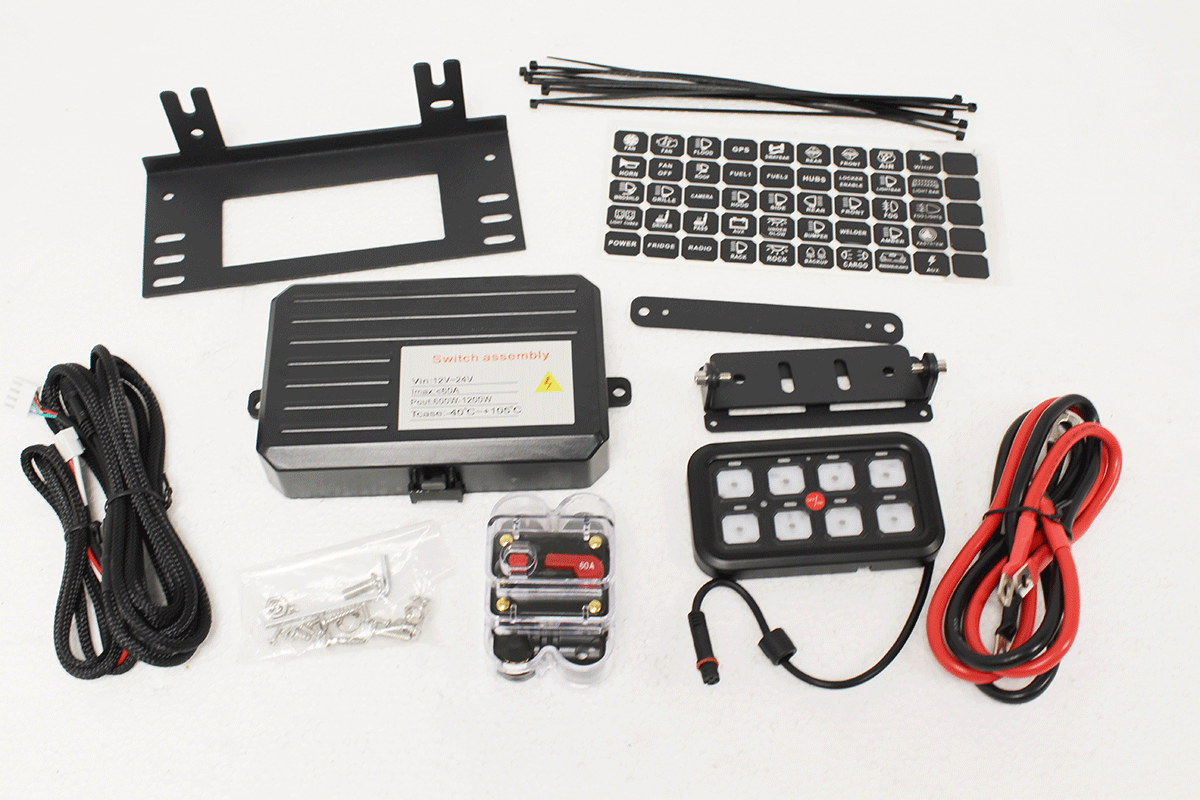

What's in the box?

Touch Screen Panel (115mm x 66mm x 15mm)

Circuit Control Box (162mm x 110mm x 34mm)

Fuses

Switch Panel Brackets

Voltage Protection Breaker

Circuit Box Brackets
