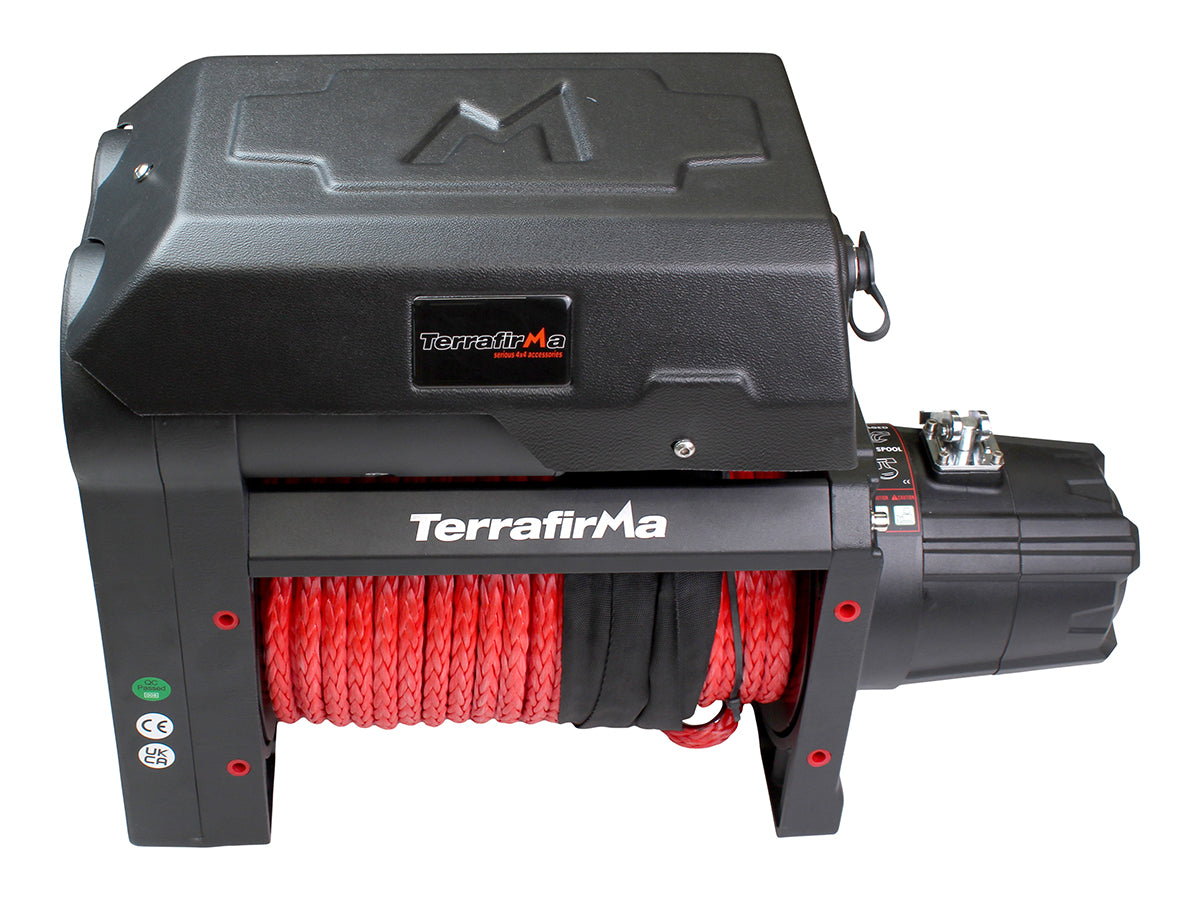

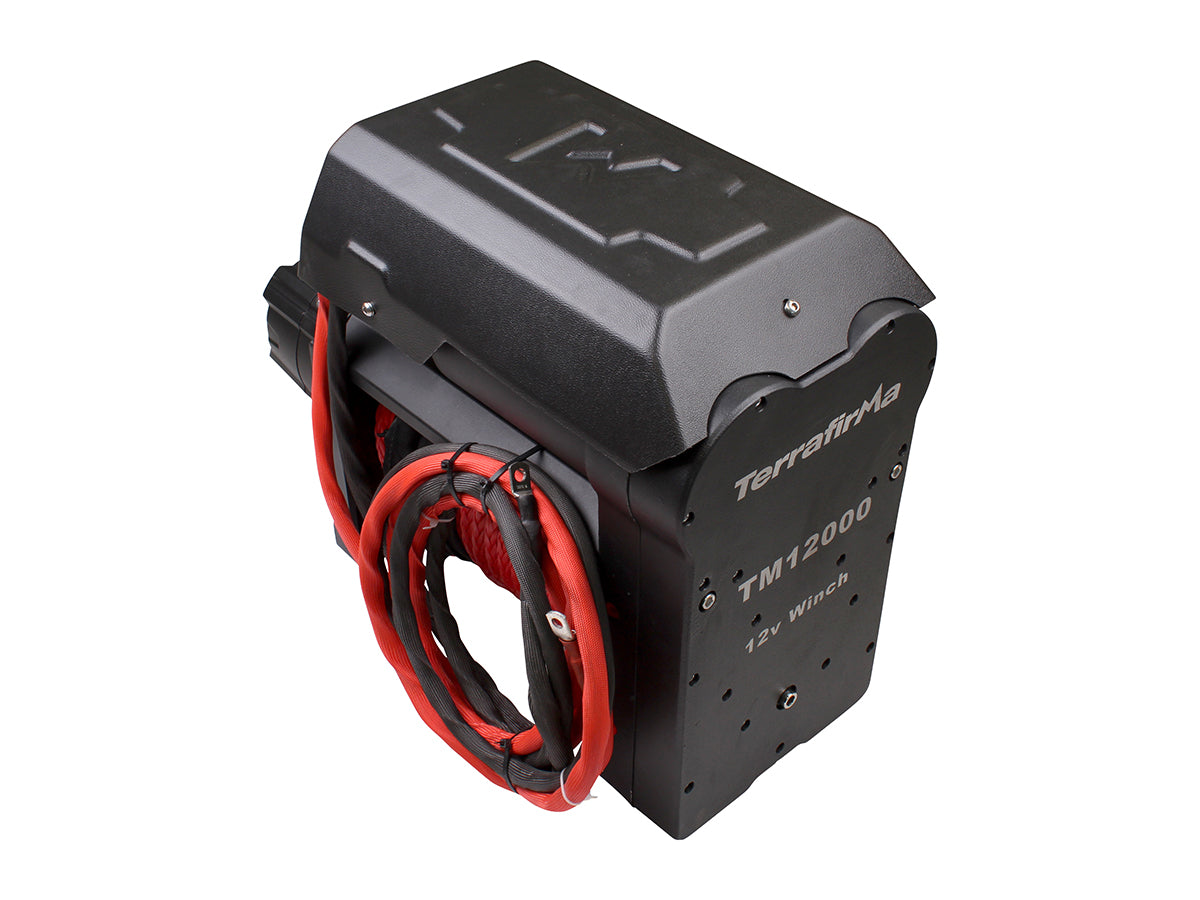

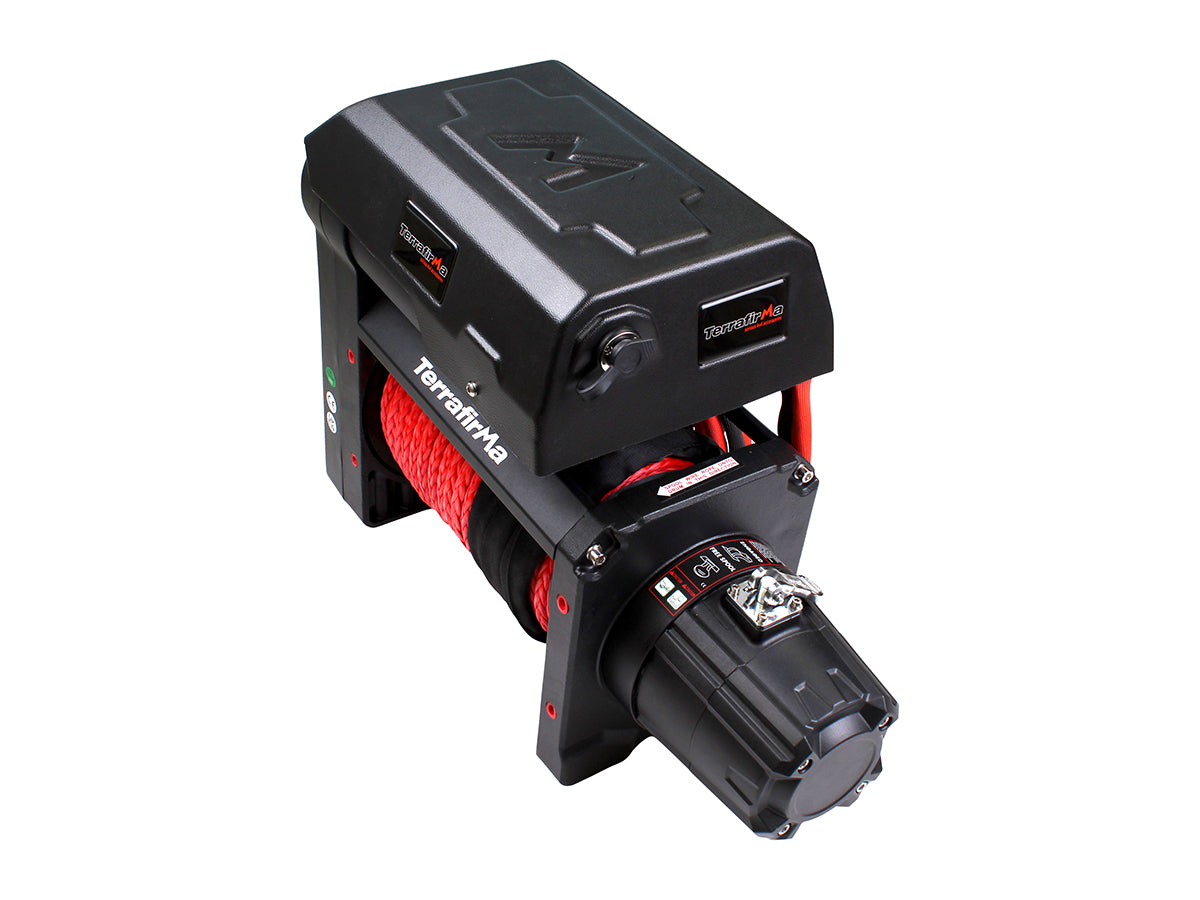

TF3360 TERRAFIRMA TWIN MOTOR HIGH SPEED 12000LB WINCH WITH 50M SYNTHETIC ROPE

TF3360 TERRAFIRMA TWIN MOTOR HIGH SPEED 12000LB WINCH WITH 50M SYNTHETIC ROPE

Twin motor high speed winch

11mm x 50m of Synthetic rope

2x Series wound motors 6.6hp / 4.9kw, 12V DC

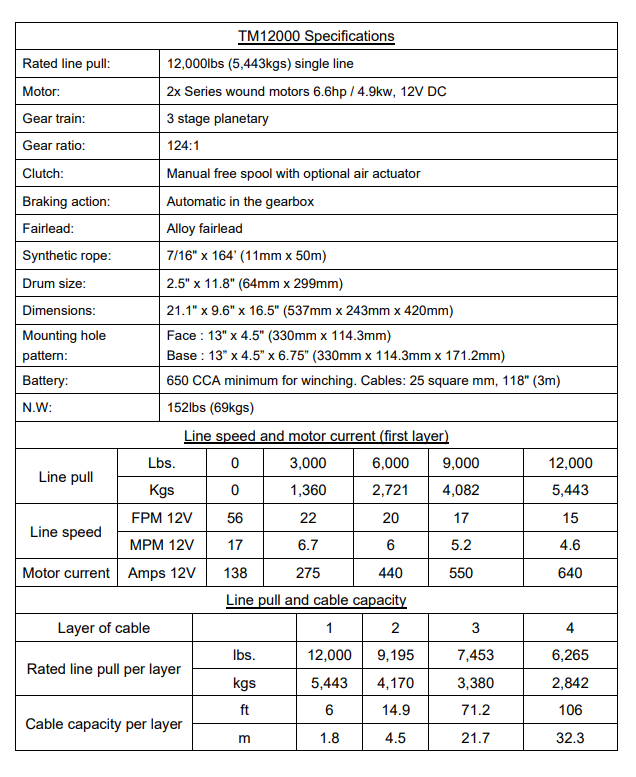

• Rated line pull: 12,000lbs (5,443kgs) single line
• Motor: 2x Series wound motors 6.6hp / 4.9kw, 12V DC
• Gear train: 3 stage planetary
• Gear ratio: 124:1
• Clutch: Manual free spool with optional air actuator
• Braking action: Automatic in the gearbox
• Fairlead: Alloy fairlead
• Synthetic rope: 7/16" x 164’ (11mm x 50m)
• Drum size: 2.5" x 11.8" (64mm x 299mm)
• Dimensions: 21.1" x 9.6" x 16.5" (537mm x 243mm x 420mm)

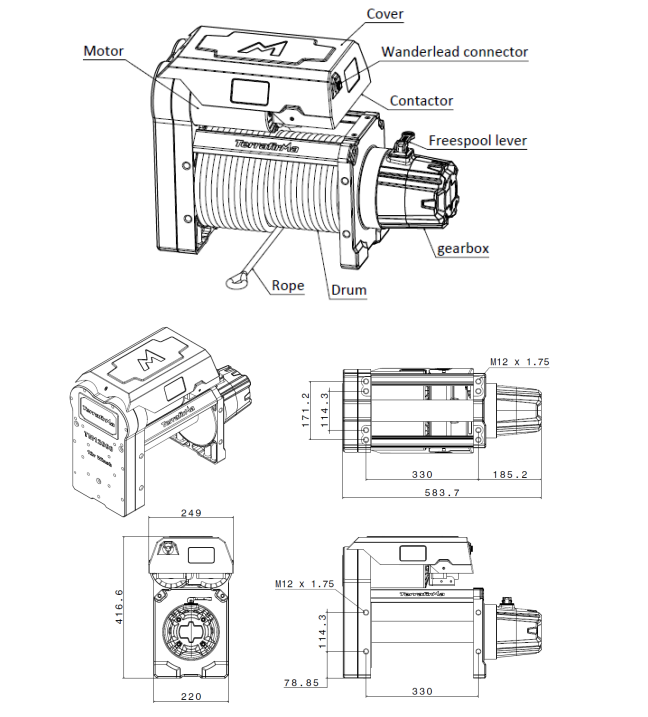

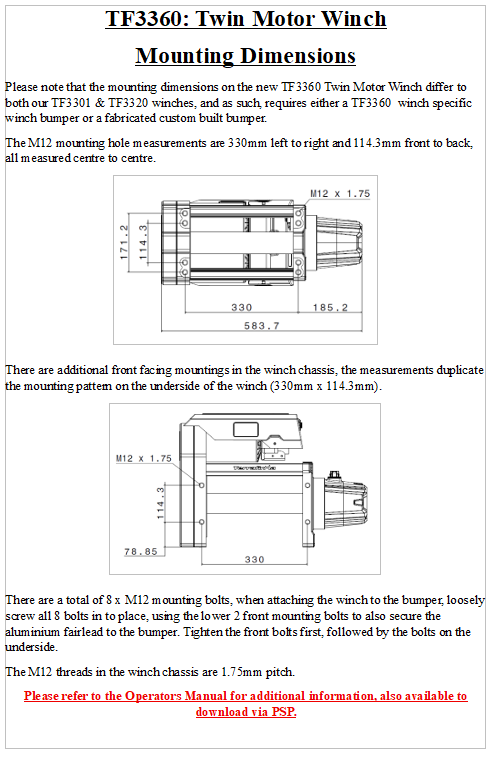

• Mounting hole pattern: Face : 13" x 4.5" (330mm x 114.3mm) Base : 13” x 4.5” x 6.75” (330mm x 114.3mm x 171.2mm)
• Battery: 650 CCA minimum for winching. Cables: 25 square mm, 118" (3m)
• N.W: 152lbs (69kgs)
